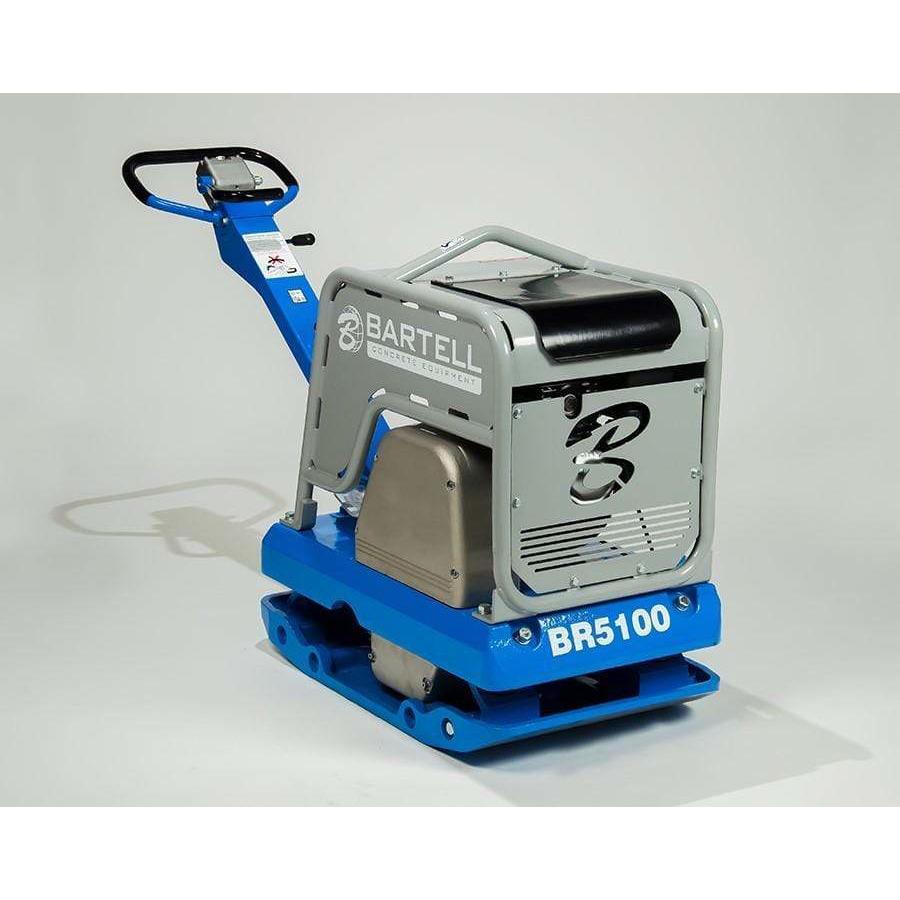

Bartell Global Reversible Plate Compactor, Yanmar Engine, 5100KG Force - BR5100


FEATURES

The BR5100 is the largest reversible plate compactor in Bartell’s fleet, offering high compaction force and travel speeds to help you accomplish your jobs quickly and effectively.

  • Fully hydraulic reversing mechanism with flexible maneuverability allows the machine for forward, backward, and spot-on compaction
  • Cast aluminum throttle lever for a more professional, stronger, and durable for tamping
  • Built-in lifting bale for increased engine and guide hook protection
  • Cast aluminum belt cover for increased clutch and engine longevity
  • Ductile iron bases for increased strength and durability
  • Optional extension plates available
  • Full speed in both forwards and reverse
  • Key start or recoil start
Specifications

Engine: Yanmar Diesel
Spec: L100W
Power Output Hp (Kw): 9.3 (6.9)
Width, in. (mm): 20” (500)
Height, in. (mm): 37” (930)
Length, in. (mm): 65” (1610)
Weight, lbs (kg): 1036 (470)
Compaction Force: 11244 lbf, 50 kN, 5100 kgf
Max Travel Speed: 72 ft/min, 22 m/min
