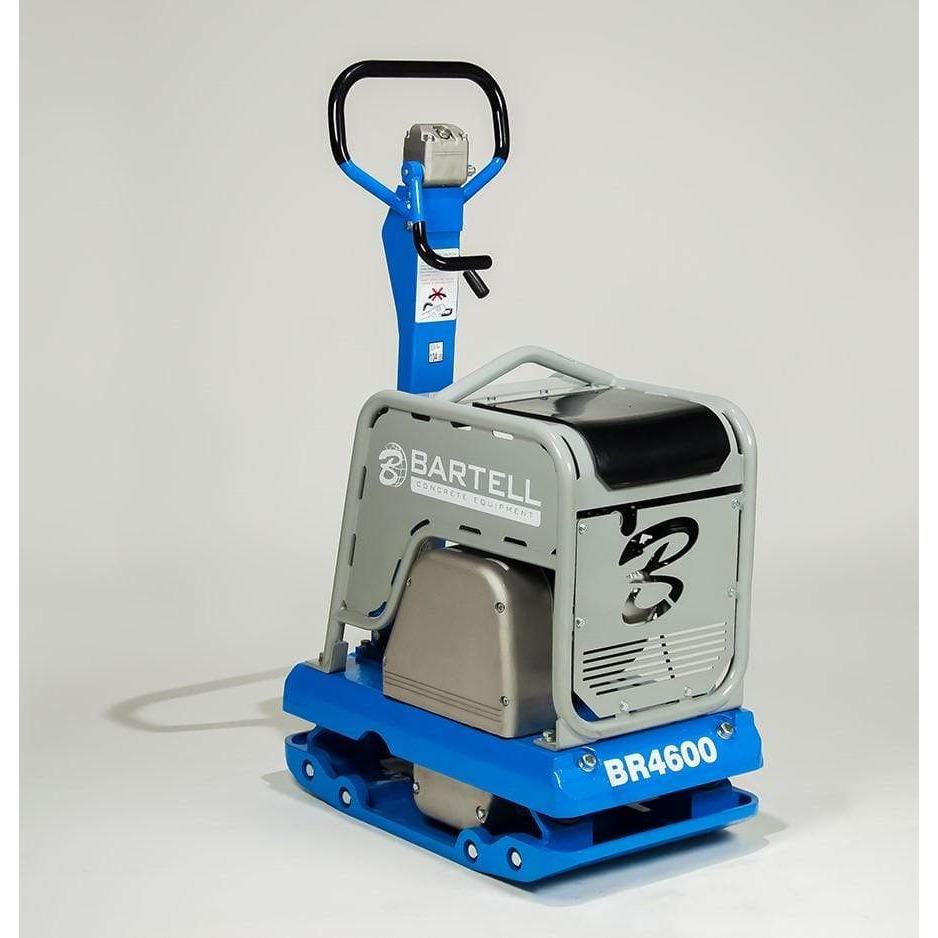

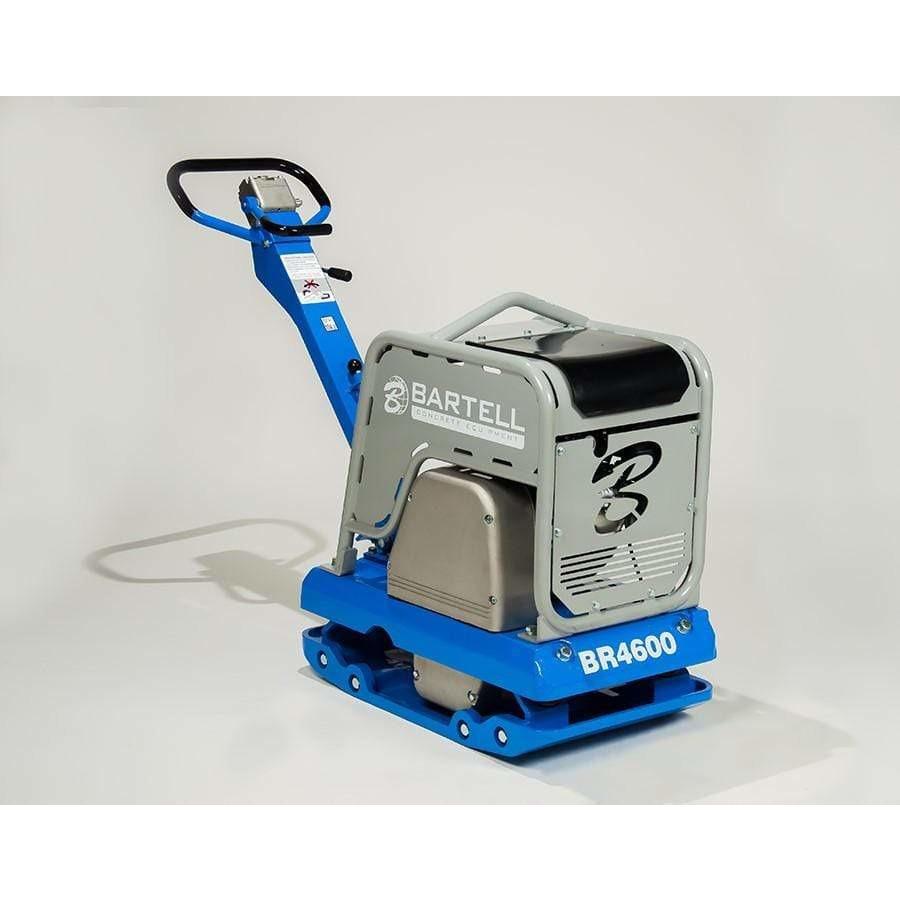

Bartell Global Reversible Plate Compactor, Honda/Yanmar, 4600KG Force - BR4600


FEATURES

The BR4600 Reversible Compactor is built for medium – large applications. Equipped with a Honda GX390, it has the power and force to effectively compact deep base material properly.

  • Hydraulic reversing mechanism with flexible maneuverability allows the machine for forward, backward, and spot-on compaction
  • Cast aluminum throttle lever for a more professional, stronger, and durable for tamping
  • New closed style frame for increased engine and guide hook protection
  • Cast aluminum belt cover for increased clutch and engine longevity
  • Ductile iron bases for increased strength and durability
  • Optional extension plates and urethane mat options available
Specifications

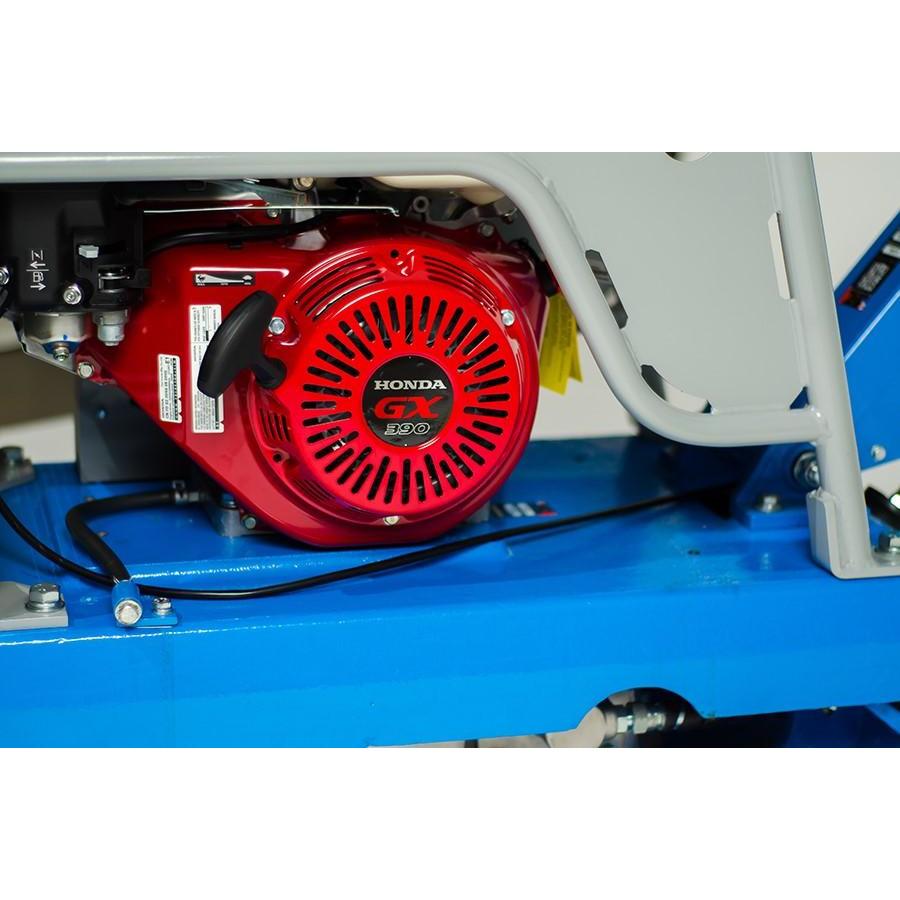

Engine: Honda
Spec: GX390
Power Output Hp (Kw): 8.6(6.3)
Width, in. (mm): 19” (485)
Height, in. (mm): 37” (930)
Length, in. (mm): 62” (1570)
Weight, lbs (kg): 772 (350)
Compaction Force: 10120 lbf, 45 kN, 4590 kgf
Max Travel Speed: 75 ft/min, 22.9 m/min
