Product Description


Product Description

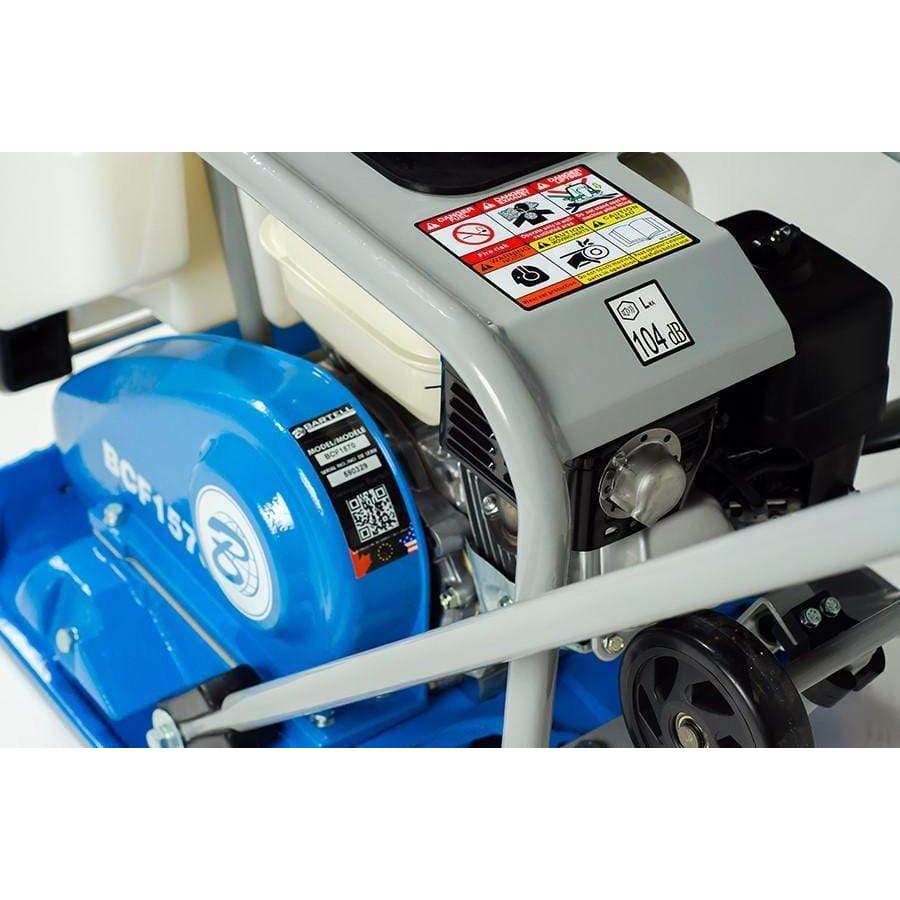

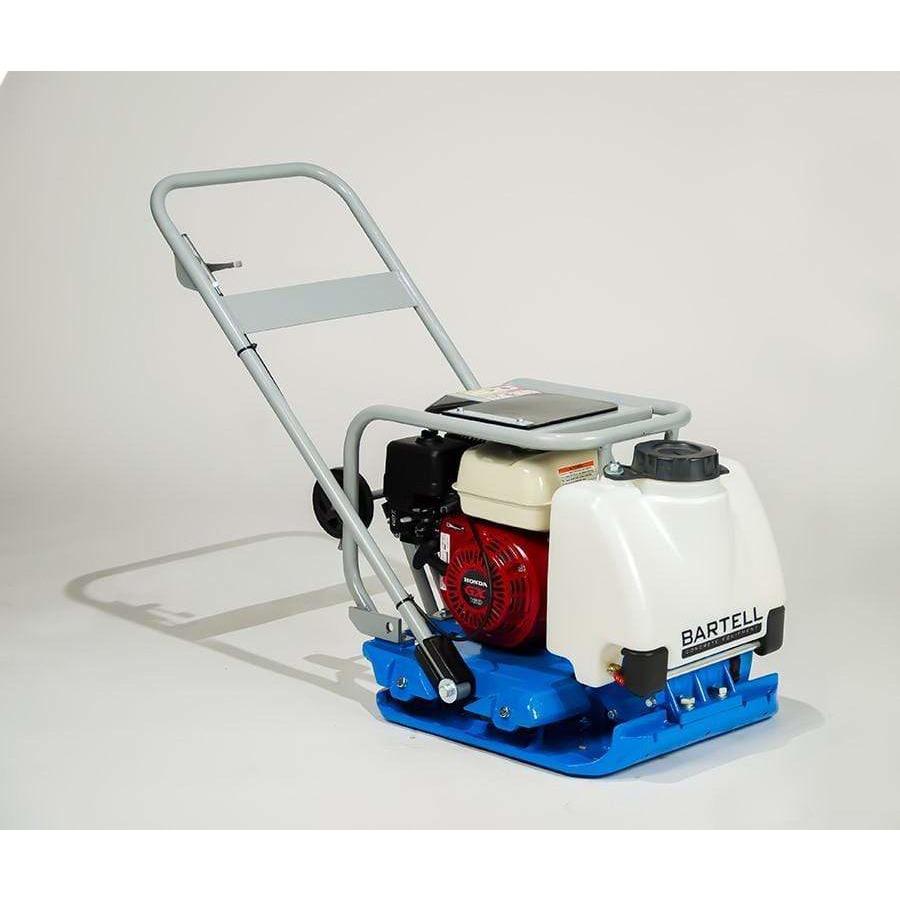

Bartell Global Forward Plate Compactor, 20X21, GX160 Honda, 1570KG Force - BCF1570


FEATURES

The BCF1570 Forward Plate is Bartell’s most popular compactor because of its versatility and quality. This unit is great for many different compactions applications, and because of the built-in water tank, it can be used on asphalt.

Bartell forward plates are innovative, hard hitting, and low maintenance.

  • Robust throttle controls – Why should you have to bend over and run next to your machine to make it stop? You’ll find conveniently mounted throttle controls standard on every piece of compaction in our lineup
  • Retractable Wheel kits – make it much easier to move your equipment to the site. Flip them down and roll. They simply lock up when you don’t need them
  • Lifting bales – Maybe your work site is far off the beaten path? Every plate has a robust lifting bale to make it easier to move your equipment when a wheel kit won’t do
  • Close to the Edge – Need to compact close to an edge? You can get right up against it with our straight-edge plate design
  • Sealed belt guards – Sometimes a single rock is all it takes to throw a belt. Our new sealed cover design keeps rocks out and still cools properly

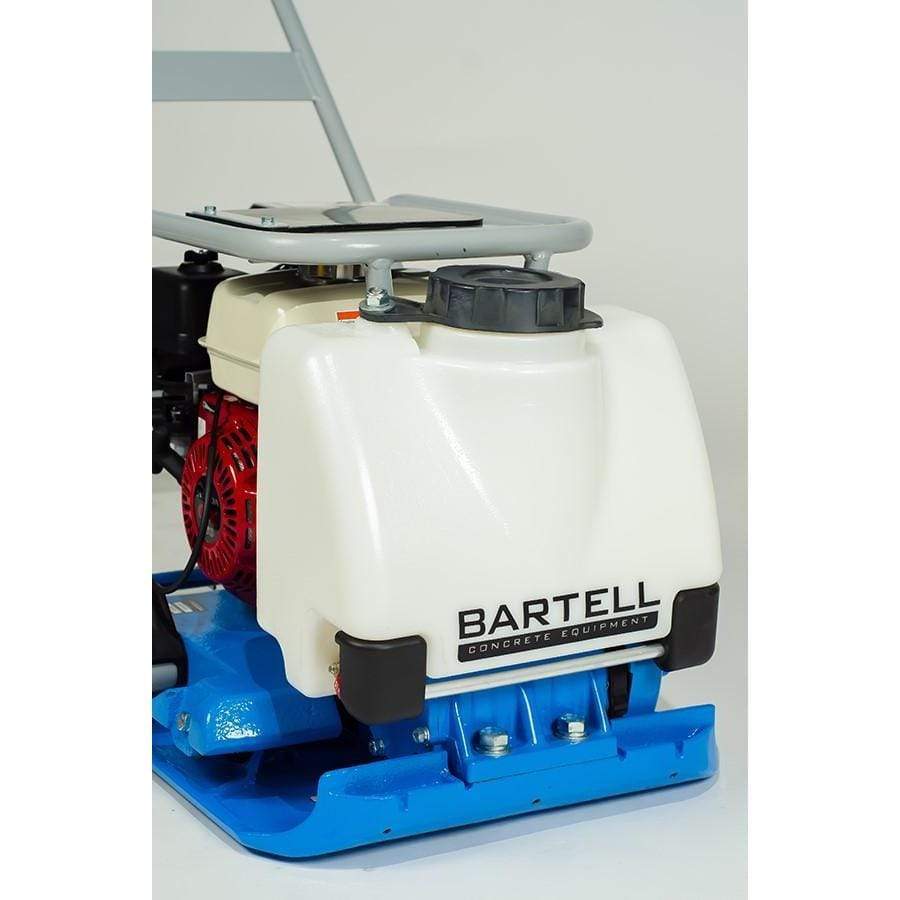

  • Water tanks – The BCF1570 comes with water tanks standard.
Specifications

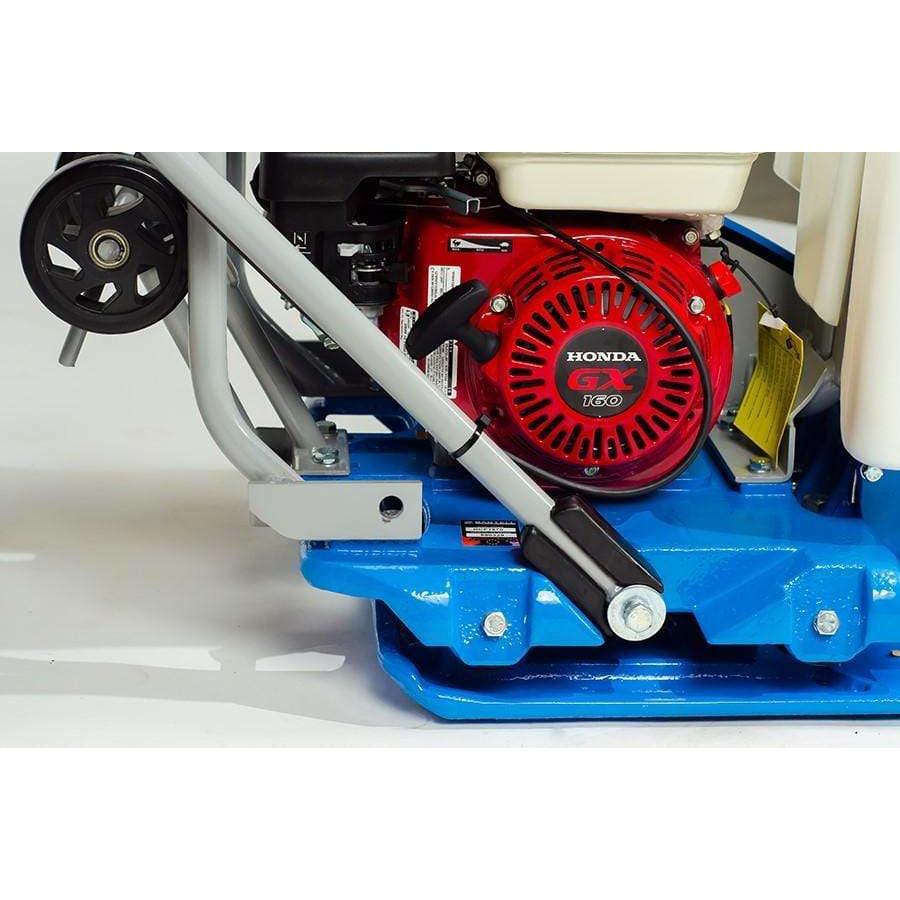

Engine: Honda GX160
Performance HP (kW): 4.8 (3.6)
Length: 44″ (1100mm)
Width: 20″ (500mm)
Height: 33″ (825mm)
Plate Size: 20″ x 21″ (500 x 525m)
Centrifugal Force: 3461 lbf, 15 kN, 1570 kgf
Travel Speed: 60-82 ft/min, 20-25 m/min

Manuals

Spec Sheet
